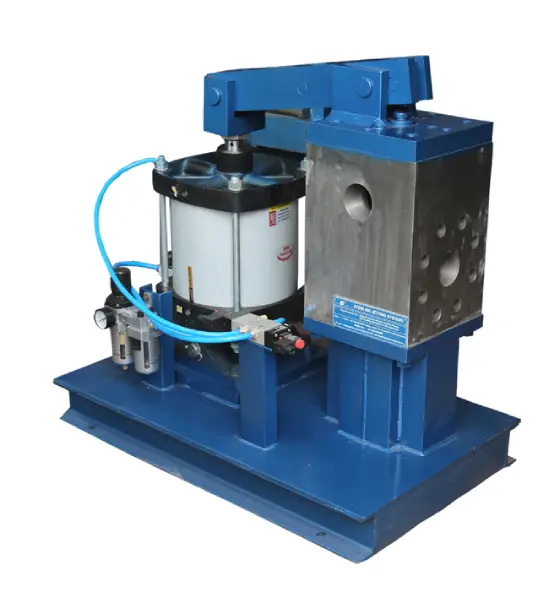

Descaling System

Manufactured in the India since 2009

Descaling System

Problem

Mineral deposits like calcium and lime build up in industrial systems (boilers, heat exchangers, pipes), causing scale formation. This reduces heat transfer, increases energy use, and can lead to blockages or equipment failure. Traditional cleaning methods, such as manual scraping or chemicals, are time-consuming, costly, and may damage equipment.

Solution

A descaling system offers an efficient solution by using high-pressure water or specialized chemicals to remove scale buildup from the internal surfaces of equipment. This system restores operational efficiency, reduces energy consumption, and helps prevent potential damage from corrosion and blockages.

descaling
Features
  1. Pump Model: High-pressure bare-shaft pump, available in SJS-18000 or SJS-34000.
  2. Electric Motor: Three-phase TEFC electric motor with a power rating from 175 HP to 340 HP, operating at 1480 RPM, 415V, and 50 Hz.
  3. Components:
    • Pressurized Sand Filter with 40-micron rating, capable of 300 LPM flow rate.
    • High Pressure Pump; Pressure: 200 to 300 bars and Flow: 200 and 250 LPM
    • Base frame equipped with anti-vibration pads
    • Control panel with VVVF drive
  4. Descaling Headers:
    • Equipped with carbide insert nozzles
    • Nozzle header designed specific to billet or slab size
  5. Additional Features:
    • Hot metal detector
    • High-pressure hoses
    • Water tank with a capacity of 3000 liters and level controller
    • High-pressure seamless pipeline
    • Suction and bypass lines

Downloads

  • Brochure:Download
  • Technical Specification SJS - 21TSX150: Download
  • Technical Specification SJS - 18000: Download
  • Technical Specification SJS - 34000: Download
  • Technical Specification SJS - 20000: Download
